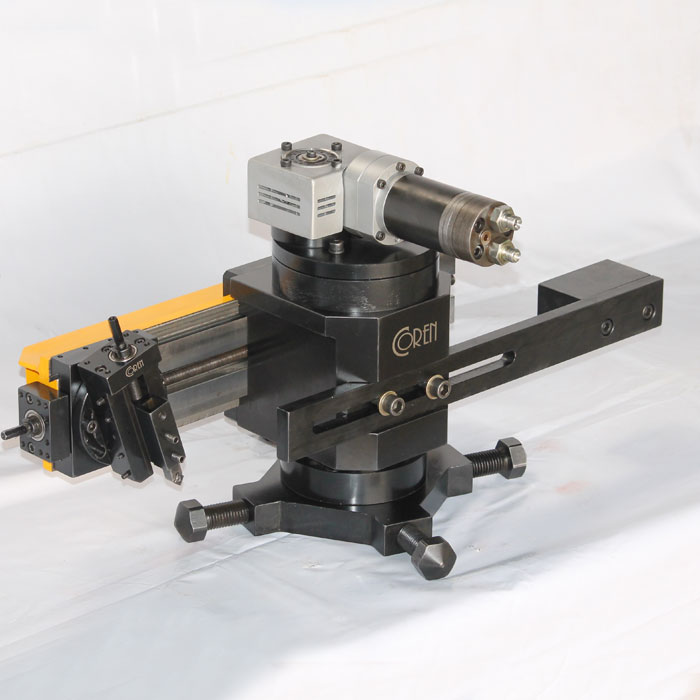

ID Mount Flange Facers

Coren's Flange Facing machines are portable equipment used for onsite machining of flanges with high tolerance and good surface finish.

State of art design.

Coren ID Mount Flange Facer is designed to accommodate on wide range of flange machining applications with flange diameters from 500 mm to 3000mm.

Robust Construction

Coren ID Mount Flange Facers is constructed to accommodate on all light duty application and still easy for handling. Coren ID Mount Flange Facers is driven by hydraulic motor for spindle rotation and twin electrical motors for circular rotation and efficient material removal.

Versatile setups

Coren ID Mount Flange Facers can be mounted in horizontal, vertical, inclined and overhead positions on different flange machining applications.

Various applications

Coren ID Mount Flange Facers has its usage in various industries like, mining, power, steel, shipbuilding, heavy engineering refineries petro chemicals, etc., covering wide range of applications like, MTB Flanges, T/L trunk and bell trunk faces, ship's gun mounting flanges, valves, crane pedestals etc.,

Technical specification

Model	CIFF0600	CIFF1000	CIFF1500	CIFF2000	CIFF3000
Machining Diameter - Min	250mm	275mm	305mm	900mm	1800mm
Machining Diameter - Max	600mm	1000mm	1500mm	2000mm	3000mm
Mounting Diameter - Min	200mm	250mm	290mm	800mm	1500mm
Mounting Diameter - Max	600mm	800mm	1400mm	1900mm	2800mm
Mininmum Swing Dia	750mm	1250mm	1200mm	1500mm	2000mm
Tool Post Travel Tiltable ± 30	50mm	50mm	102mm	120mm	120mm
RPM (Max)	20	20	20	20	20
Drive Type	Pneumatic / Hydraulic	Pneumatic / Hydraulic	Pneumatic / Hydraulic	Pneumatic / Hydraulic	Pneumatic / Hydraulic
Mounting Position	Horizontal / Vertical / Inclined position / Over Hear	Horizontal / Vertical / Inclined position / Over Hear	Horizontal / Vertical / Inclined position / Over Hear	Horizontal / Vertical / Inclined position / Over Hear	Horizontal / Vertical / Inclined position / Over Hear
Cutting Tool	Single Point	Single Point	Single Point	Single Point	Single Point
ID Boring Attachment	Optional	Optional	Optional	Optional	Optional
Back Facing Attachent	Optional	Optional	Optional	Optional	Optional
Grove Machining	Optional	Optional	Optional	Optional	Optional
Equipment Weight
Equipment Weight On Job	45Kgs	75Kgs	150Kgs	260Kgs	340Kgs
Packing Size
