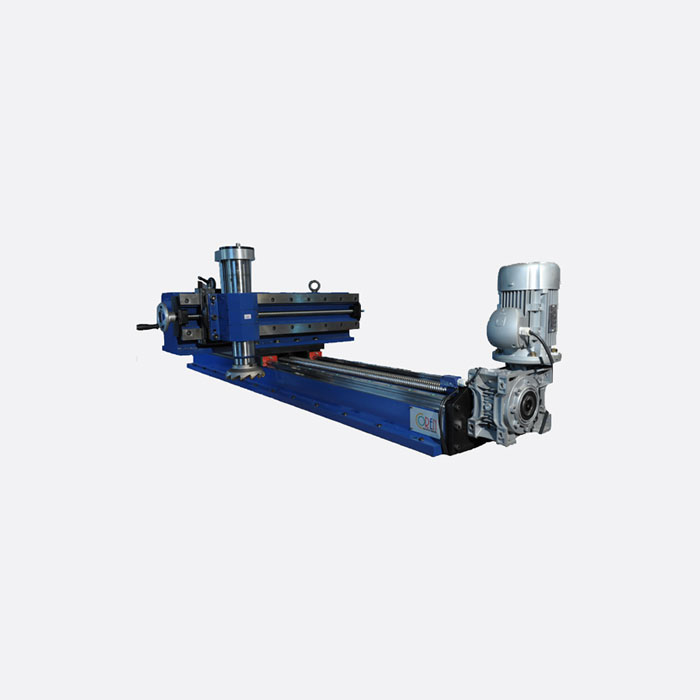

Coren's Linear Milling Machine

Coren's

Linear Milling Machine

Coren's Linear Milling Machine are portable equipment used for onsite machining of flanges with high tolerance and good surface finish.

State of art design.
Coren's Linear Milling Machine is designed to accommodate on wide range of flange machining applications with flange diameters from 500 mm to 2000mm.
Robust Construction
Coren's Linear Milling Machine is constructed to accommodate on all light duty application and still easy for handling. Coren's Linear Milling Machine is driven by hydraulic motor for spindle rotation and twin electrical motors for circular rotation for efficient material removal.
Versatile setups
Coren's Linear Milling Machine can be mounted in horizontal, vertical and inclined positions on different flange machining applications.
Various applications
Coren's Linear Milling Machine has its usage in various industries like, mining, power, steel, shipbuilding, heavy engineering etc., covering wide range of applications like, MTB Flanges, T/L trunk and bell trunk faces, ship's gun mounting flanges, valves, crane pedestals etc.,

Technical specification

Model CLMM - 1200 CLMM - 2400 CLMM - 3200
Machine Length Max 1000 2000 3000
Machine Length width 250 350 450
Required Mounting Space 50 100 120
Total Length of the Bed 1200 x 200 2400 x 350 3200 x 400
Total length of the cross Bed 1200 2400 3200
Total Length of the Cross Slide 450 750 1000
Tool type Multipoint Milling Cutter Multipoint Milling Cutter Multipoint Milling Cutter
Drive x-y Movements Electric Motors Electric Motors Electric Motors
Drive z movement Manual Manual Manual
Spindle ISO 40 ISO 40 ISO 40
Spindle Drive Hydraulic / Servo Electric Hydraulic / Servo Electric Hydraulic / Servo Electric
Cutter Diameter Ø 160 Ø 200 Ø 200
On Job weight of the equipment
Gross weight of the Equipment
Size of the Packing Box L x W x H
